WESPC Seal CH11979 for Perkins 2500 & 2800 Series Diesel Engines
Precision-engineered integral seal/gasket designed for reliable performance in Perkins 2500 and 2800 series diesel engines.
| Brand Name | WESPC |
| Place of Origin | China |
| Part Number | CH11979 |
| After-sales Service | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application
The CH11979 Seal is specifically engineered for 12.5-liter and 15.2-liter inline diesel engines in Perkins 2500 and 2800 series. This critical component prevents fluid leakage between mating surfaces, ensuring proper containment of lubricating oil, coolant, or combustion gases. Widely used in heavy-duty power generation equipment, industrial machinery, marine propulsion systems, and construction equipment.
Technical Specifications
- Seal Type: Integral seal / Gasket / Leak-off gasket
- Compatible Engines: 12.5L and 15.2L diesel engines (2506 series, 2506A, 2506B, 2506C, 2506D, 2506E, 2806 series)
- Seal Function: Prevents leakage of oil, coolant, or gases between mating flanges
- Material Grade: High-grade composite gasket material or elastomeric compound
- Material Construction: Multi-layer steel (MLS) or fiber-reinforced elastomeric composition
- Operating Temperature: -40°C to +200°C
- Pressure Rating: Withstands engine oil system, coolant system, and combustion chamber pressures
- Thickness: 1.0-2.0 mm (application dependent)
- Weight: 0.01 kg (0.022 lbs) per unit
- Packaged Dimensions: 40 mm × 40 mm × 10 mm (approximate)
Material & Performance Features
Manufactured from high-grade composite materials with multi-layer steel (MLS) construction or fiber-reinforced elastomeric compounds. Provides exceptional resistance to engine oils, coolants, combustion gases, and heat. Features anti-aging additives, corrosion inhibitors, and reinforcing fibers for long-term dimensional stability and compression set resistance under cyclic thermal and mechanical loads.
Excellent chemical compatibility with modern engine lubricants including synthetic and semi-synthetic oils, ethylene glycol-based coolants, and diesel fuel. Maintains flexibility and sealing force across the entire operating temperature range, ensuring effective sealing during cold starts and high-temperature operation.
Interchange Part Numbers
CH11979; 1262702; 5112-0046-1

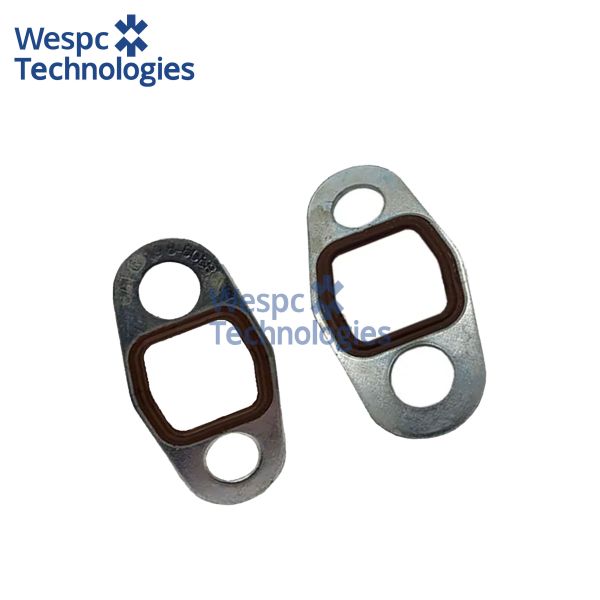

WESPC Seal CH11979 Product Image
